King kong EC Series Solar Panels200W25VTOPCON Monocrystalline
Product description
The Kingkong EC series consists of standard monocrystalline photovoltaic modules featuring TOPCON solar cells, which increase power output per unit area. Built with tempered glass and an aluminum alloy frame, these durable modules offer strong mechanical performance and operate stably in diverse environments with high efficiency. They also show minimal power degradation—retaining at least 90% of initial output after 10 years and 80% after 20 years. With excellent reliability and long-term performance, they are ideal for a wide range of applications.
Key features
-
Gallium-doped TechnologyEnhanced light absorption efficiency for higher conversion efficiencyLower LCOE and BOSLightweight design with transparent back panel for easy installation and reduced BOS costs.Module power is typically increased by 5-25%, resulting in a significant reduction in LCOE.Anti PID/Low LID protectionLess Hot Spot Shading effectsLower temperature coefficient
Product Parameters
| Mechanical parameters | |
| Cells configuration |
3×13 |

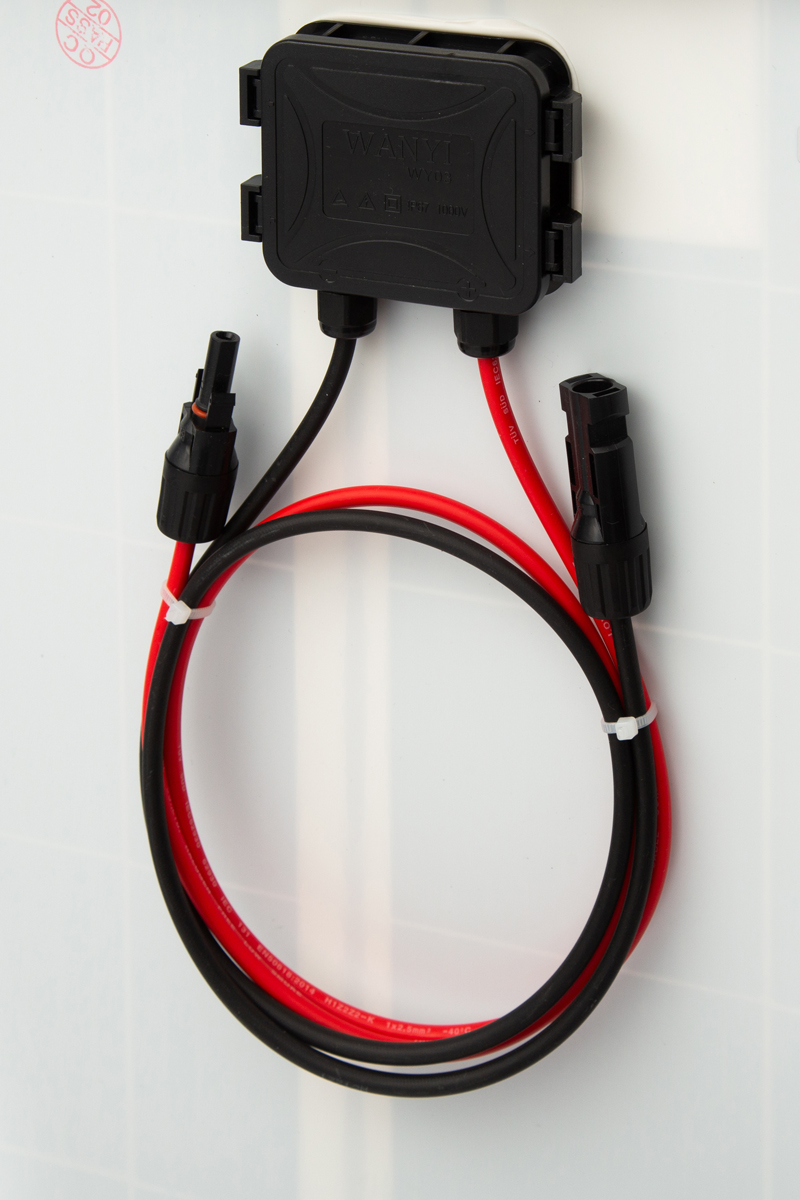

| Junction box |
Single-cell junction box，Two diodes |
|
Output Cables |
4mm²,The positive and negative electrodes are both 900 mm |
| Glass Type |
3.2mm Tempering、Ultra white |
| Frame |
Anodized aluminum alloy frame |
| Net weight |
9.4Kg |
| Size |
1410*663*35mm |
| Electrical performance parameters | |
| Cell type |
TOPCON Monocrystalline |
| Model |
GSMO-YWOZ200-25A |
| Standard power |
200W |
| Peak voltage (Vmp) |
24.02V |
| Peak Current (Imp) |
8.28A |
| Open Circuit Voltage |
26.90V |
| Short Circuit Current |
8.78A |
| Test standards |
STC : AM1.5 1000W/m² 25℃ |
| Working parameters | |
| OTR |
- 40℃— +80℃ |
| Power Tolerance |
±2% |
| System Voltage |
DC1000V |
| Maximum fuse rating |
20A |
| Nominal temperature |
45±2℃ |
| Safety Class |
Class Ⅱ |
| Fire resistance rating |
Class C |
| Load capacity | |
| Front static load |
3600Pa |
| Rear static load |
2400Pa |
| Hail Impact test |
Diameter: 25mm, Impact speed: 23m/s |
| Temperature coefficient | |
| TC Power |
- 0.30%/℃ |
| TC Voltage |
- 0.28%/℃ |
| TC Current |
+0.05%/℃ |
Product Display
