King kong NR Series Solar Panels160W45VPERC Monocrystalline
Product description
The Kingkong NR Series modules are standard monocrystalline solar panels, integrating high-efficiency PERC monocrystalline cells with a conversion efficiency of over 23%. Encapsulated in 3.2mm ultra-clear tempered glass, these panels benefit from a mature manufacturing process, ensuring stable power output and exceptional durability. Under standard test conditions (STC), the power retention rate is guaranteed to be ≥90% after 10 years and ≥80% after 20 years.
Key features
-
Gallium-doped TechnologyEnhanced light absorption efficiency for higher conversion efficiencyLower LCOE and BOSLightweight design with transparent back panel for easy installation and reduced BOS costs.Module power is typically increased by 5-25%, resulting in a significant reduction in LCOE.Anti PID/Low LID protectionLess Hot Spot Shading effectsLower temperature coefficient
Product Parameters
Surface Material
| Mechanical parameters | |
| Cells configuration |
6×35 |

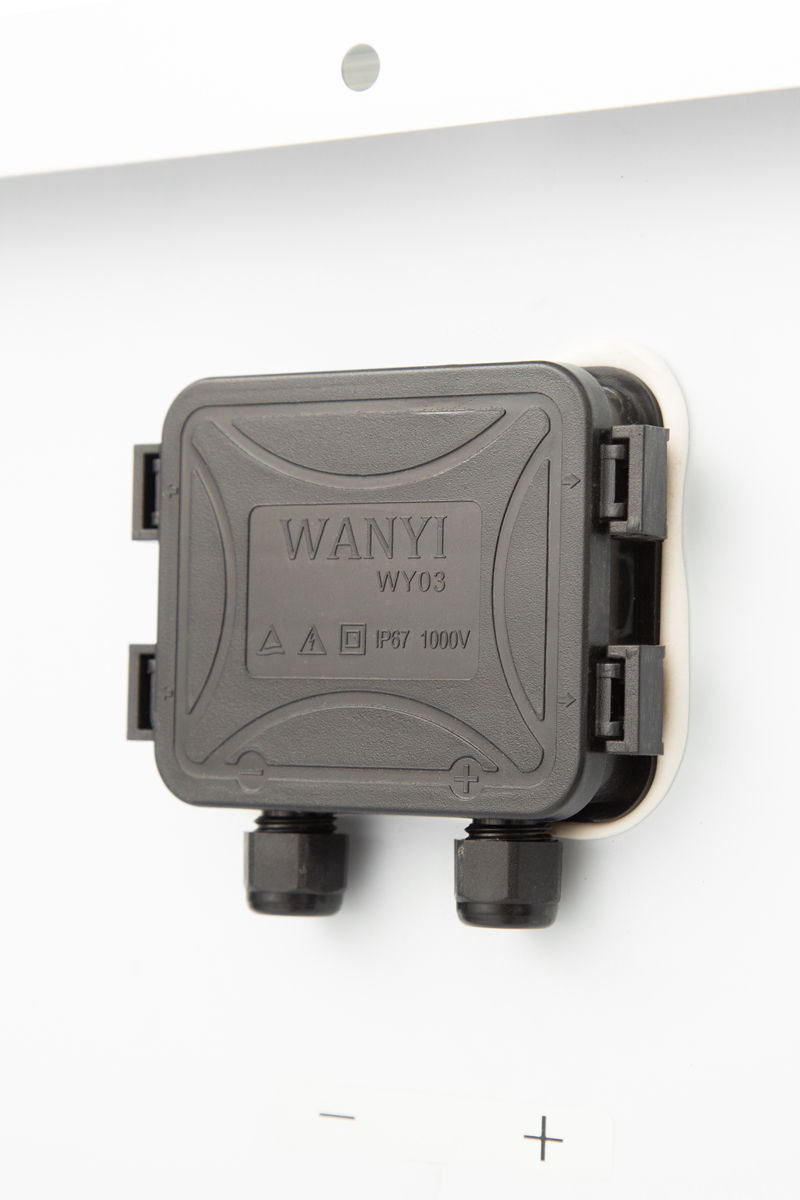

| Junction box |
Single-cell junction box，Two diodes |
|
Output Cables |
Customized according to requirements |
|
Glass Type |
|
| Frame |
Anodized aluminum alloy frame |
| Net weight |
8.9Kg |
| Size |
1567*553*30mm |
| Electrical performance parameters | |
| Cell type |
PERC Monocrystalline |
| Model |
GSMO-YPSS160-45A |
| Standard power |
163.04W |
| Peak voltage (Vmp) |
43.95V |
| Peak Current (Imp) |
3.71A |
| Open Circuit Voltage |
51.67V |
| Short Circuit Current |
4.03A |
| Test standards |
STC : AM1.5 1000W/m² 25℃ |
| Working parameters | |
| OTR |
- 40℃— +80℃ |
| Power Tolerance |
±2% |
| System Voltage |
DC1000V |
| Maximum fuse rating |
10A |
| Nominal temperature |
45±2℃ |
| Safety Class |
Class Ⅱ |
| Fire resistance rating |
Class C |
| Load capacity | |
| Front static load |
3600Pa |
| Rear static load |
2400Pa |
| Hail Impact test |
Diameter: 25mm, Impact speed: 23m/s |
| Temperature coefficient | |
| TC Power |
- 0.30%/℃ |
| TC Voltage |
- 0.28%/℃ |
| TC Current |
+0.05%/℃ |

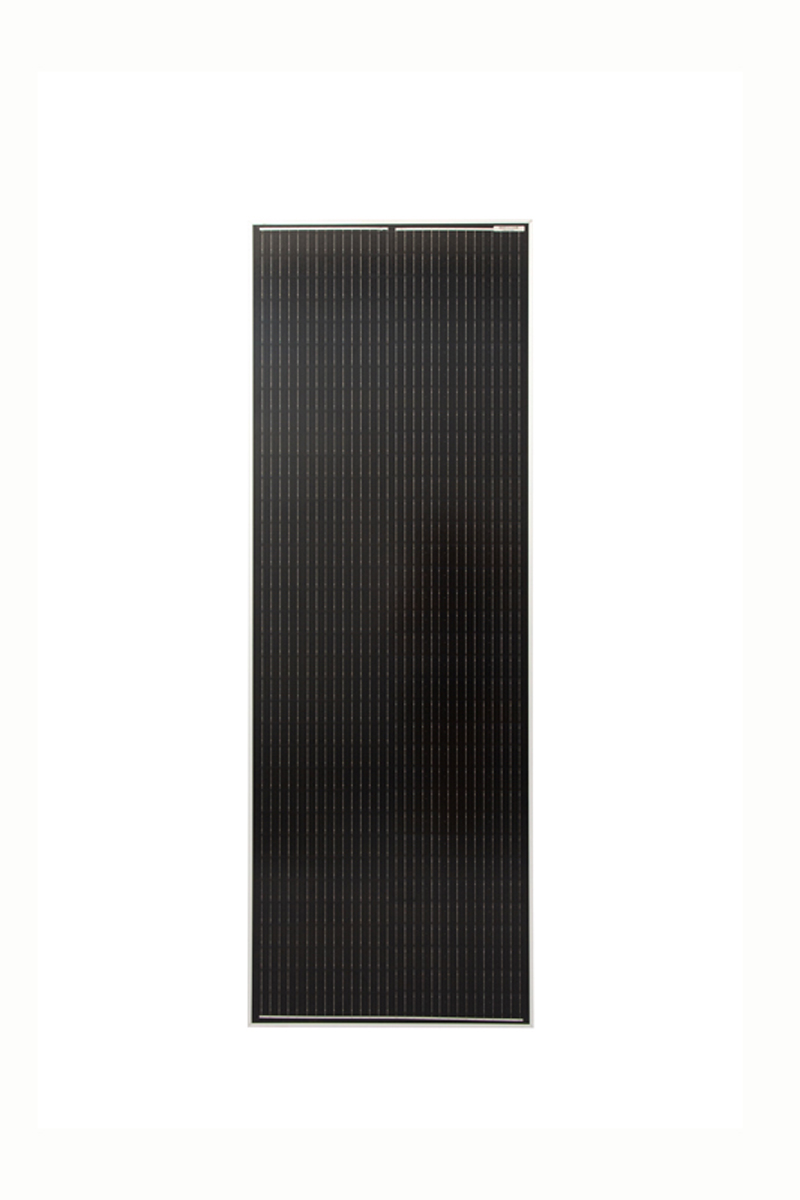

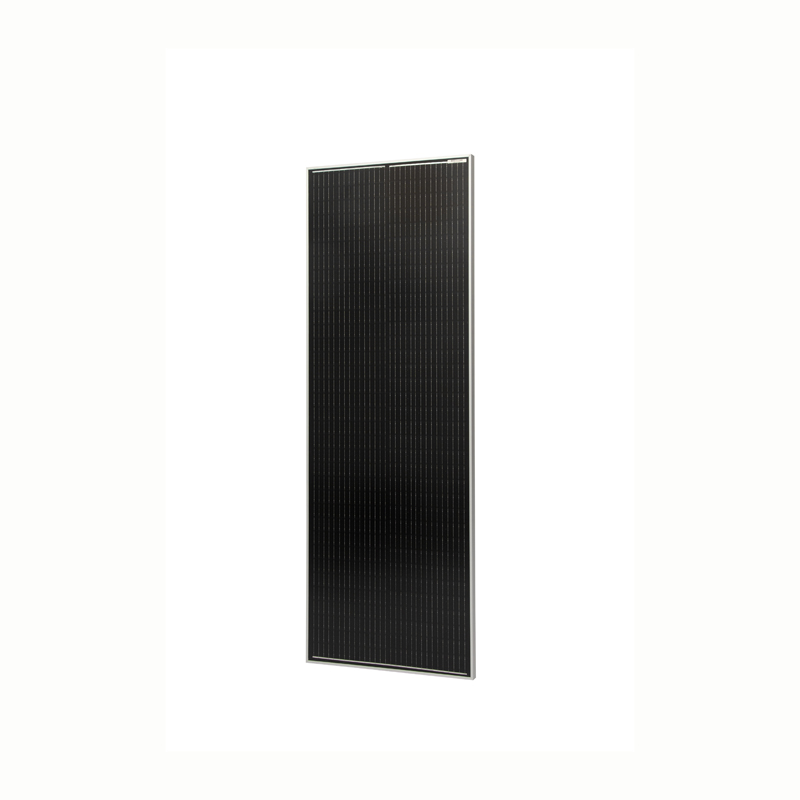

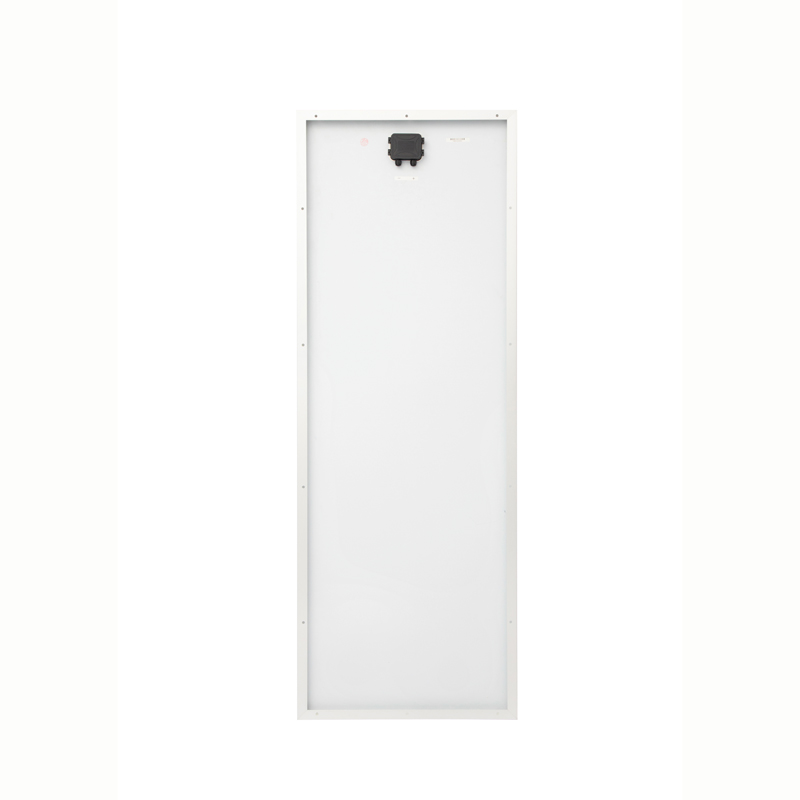

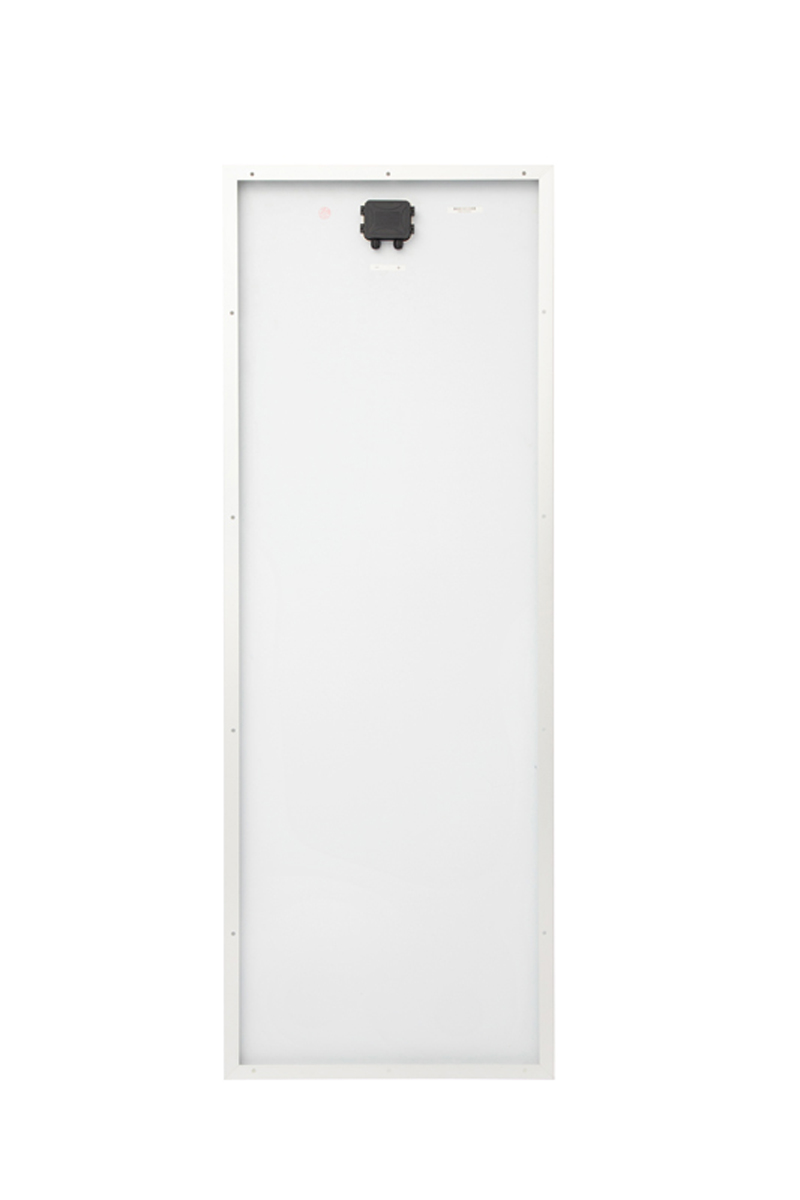

Product Display
