King kong NR Series Solar Panels 70W 20V PERC 260301
Standard Solar Panels

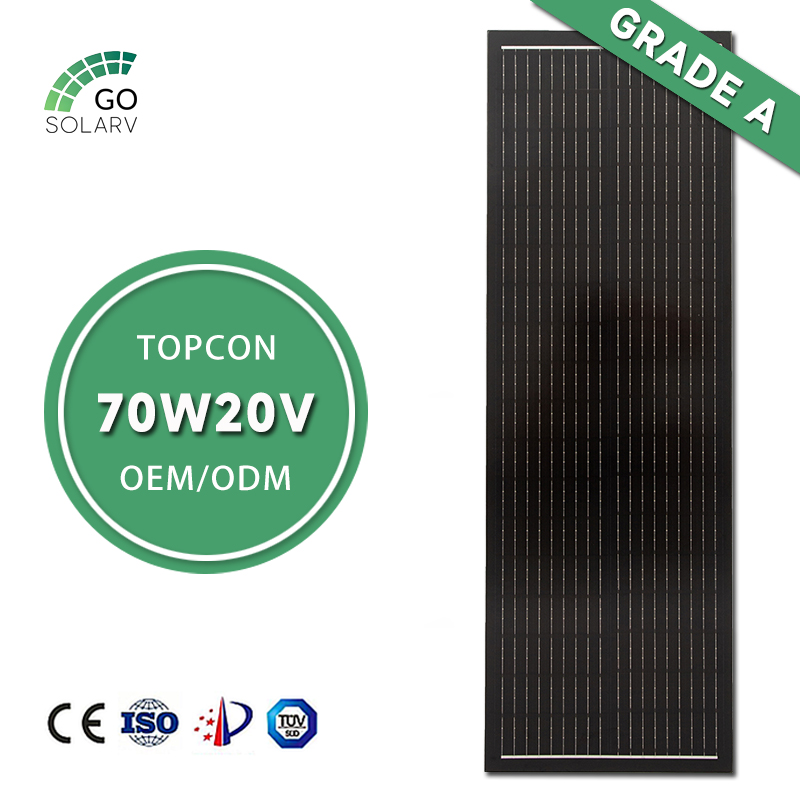

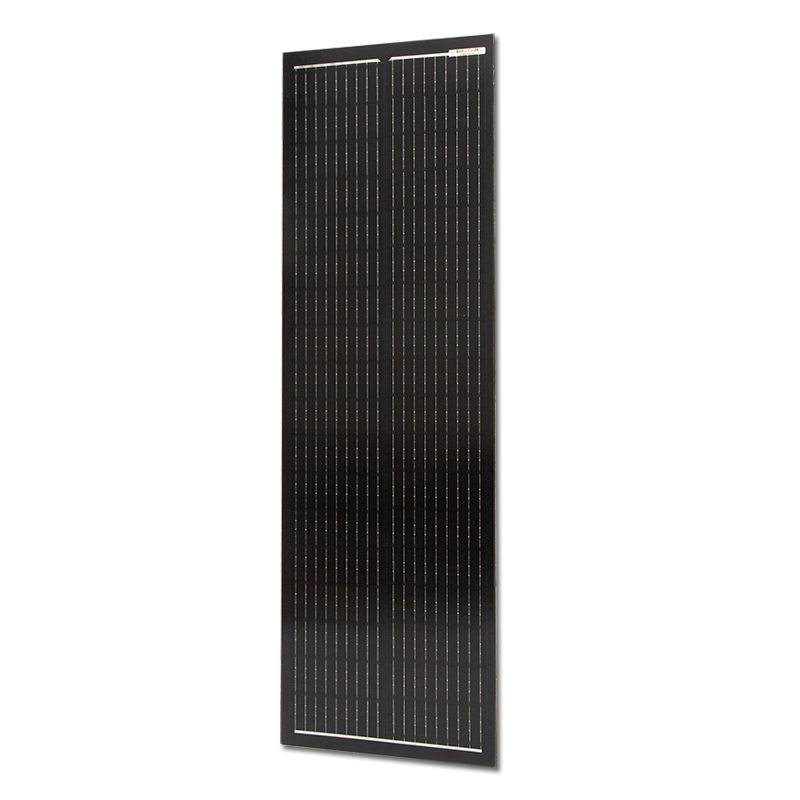

King kong NR Series Solar Panels 70W 20V PERC 260301

Brand: GO SolarV/OEM/ODM

Item no.: GSMO-YPSS70-20A

Solar Cell: TOPCON

Number of cells: 2×18

Power range: 70W

Certificate: CE/ISO/TUV

Warranty: 5 years

Leading time: 20 working days after getting deposit

Payment: L/C T/T

    Product description

    The Kingkong EC series consists of standard monocrystalline photovoltaic modules featuring TOPCON solar cells, which increase power output per unit area. Built with tempered glass and an aluminum alloy frame, these durable modules offer strong mechanical performance and operate stably in diverse environments with high efficiency. They also show minimal power degradation—retaining at least 90% of initial output after 10 years and 80% after 20 years. With excellent reliability and long-term performance, they are ideal for a wide range of applications.

    Product Parameters

    Mechanical parameters
    Cells configuration

    2×18

    Junction box

    Single-cell junction box,Two diodes

    Output Cables

    Customized according to requirements

    Glass Type

    3.2mm Tempering、Ultra white

    Frame

    Anodized aluminum alloy frame

    Net weight

    4.2Kg

    Size

    1097*369*5mm

    Electrical performance parameters
    Cell type

    TOPCON Monocrystalline

    Model

    GSMO-YPSS70-20A

    Standard power

    72.3W

    Peak voltage (Vmp)

    20.1V

    Peak Current (Imp)

    3.60A

    Open Circuit Voltage

    24.52V

    Short Circuit Current

    3.96A

    Test standards

    STC : AM1.5 1000W/m² 25℃

    Working parameters
    OTR

    - 40℃— +80℃

    Power Tolerance

    ±2%

    System Voltage

    DC1000V

    Maximum fuse rating

    10A

    Nominal temperature

    45±2℃

    Safety Class

    Class Ⅱ

    Fire resistance rating

    Class C

    Load capacity
    Front static load

    3600Pa

    Rear static load

    2400Pa

    Hail Impact test

    Diameter: 25mm,

    Impact speed: 23m/s

    Temperature coefficient
    TC Power

    - 0.30%/℃

    TC Voltage

    - 0.28%/℃

    TC Current

    +0.05%/℃

    Product Expansion

    As the global energy structure accelerates its transformation towards cleanliness and low carbonization, the photovoltaic (PV) industry, as the core pillar of renewable energy, is entering a critical cycle of technological iteration. TOPCon (Tunneling Oxide Passivated Contact) technology has become the absolute mainstream in the photovoltaic cell field due to its comprehensive advantages of high efficiency, stability and economy. According to TrendForce's forecast, by the end of 2025, the TOPCon cell production capacity will reach about 967GW, accounting for 83% of the global total cell production capacity, with an actual output of about 580GW. As of March 2025, the proportion of TOPCon in China's photovoltaic cell output has reached as high as 86.9%, far exceeding other technical routes. We are deeply engaged in the photovoltaic field, focusing on the R&D, production and customization of TOPCon non-standard solar panels. Relying on the latest industry technological achievements after June 2025, we break the limitations of standardized products and provide tailor-made photovoltaic solutions for global customers with different scenarios and needs.
