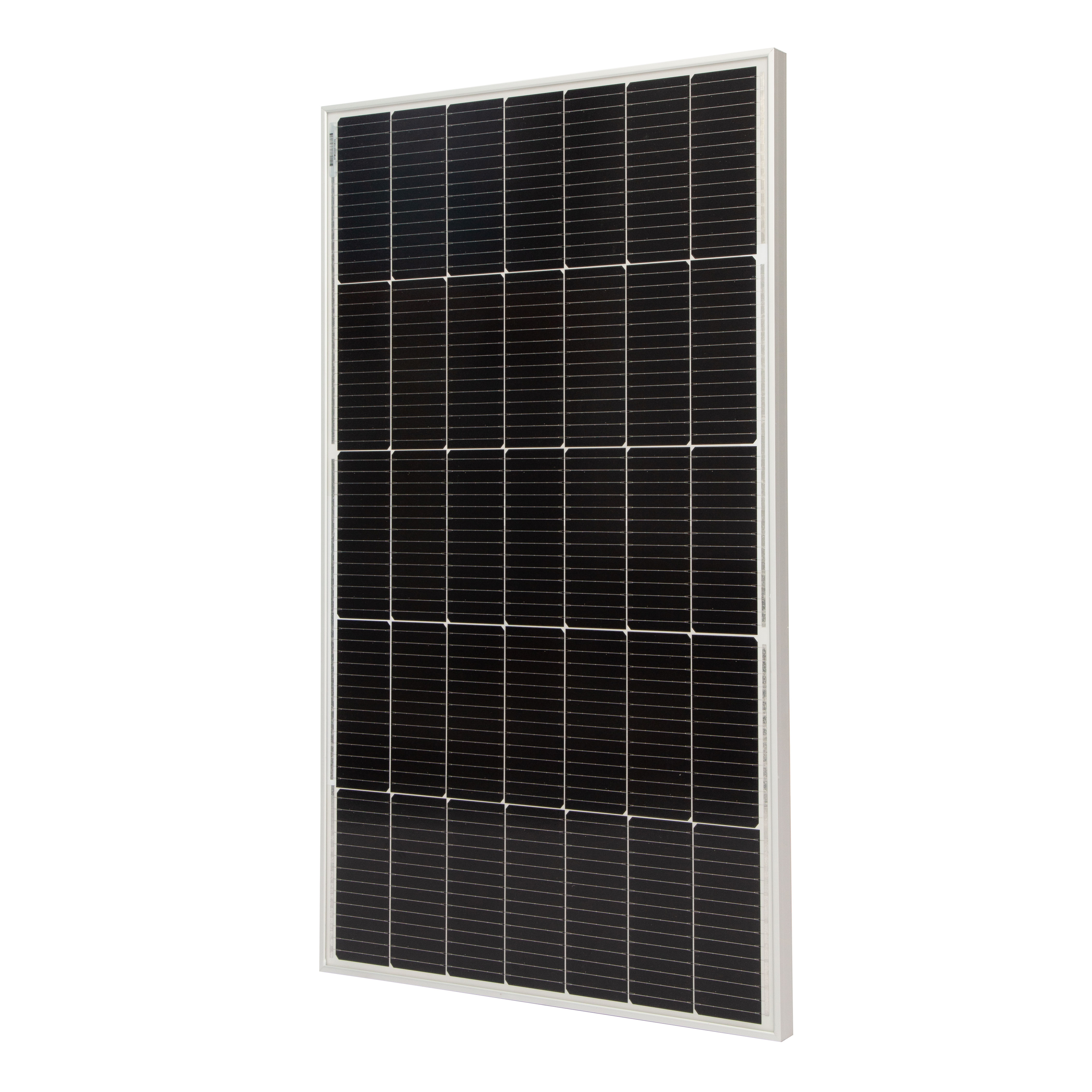

King kong PRO Series Solar Panels 100...

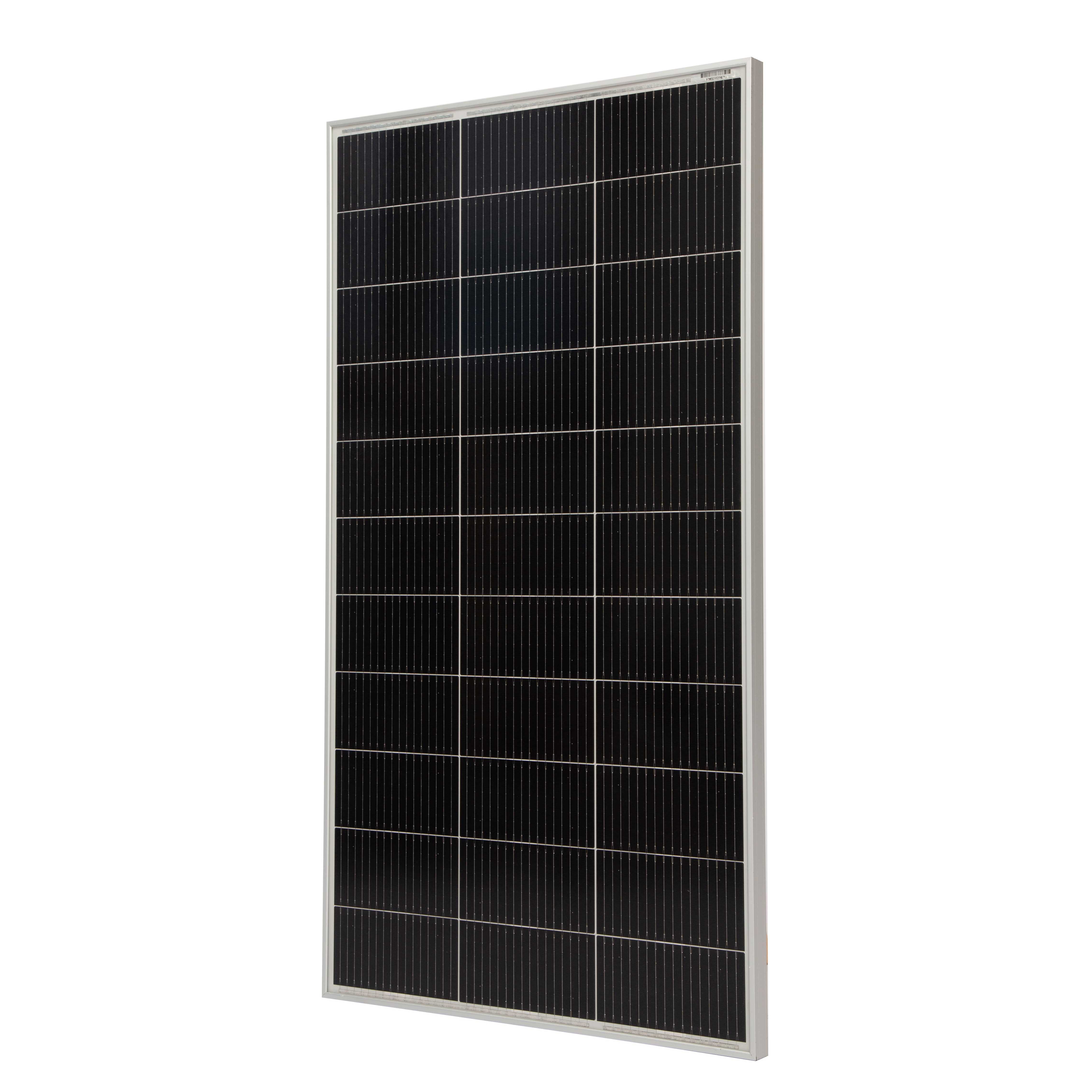

King kong EC Series Solar Panels 130W...

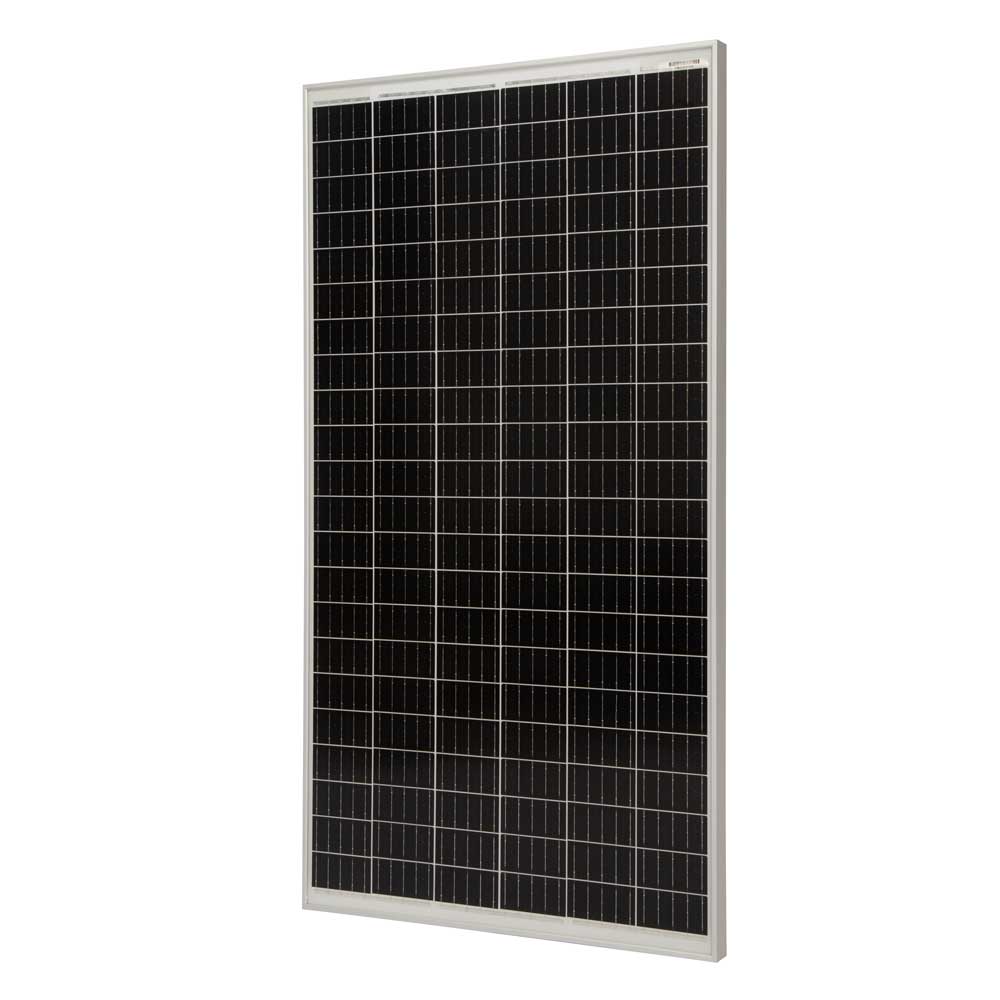

King Kong NR Series Solar Panels 100W...

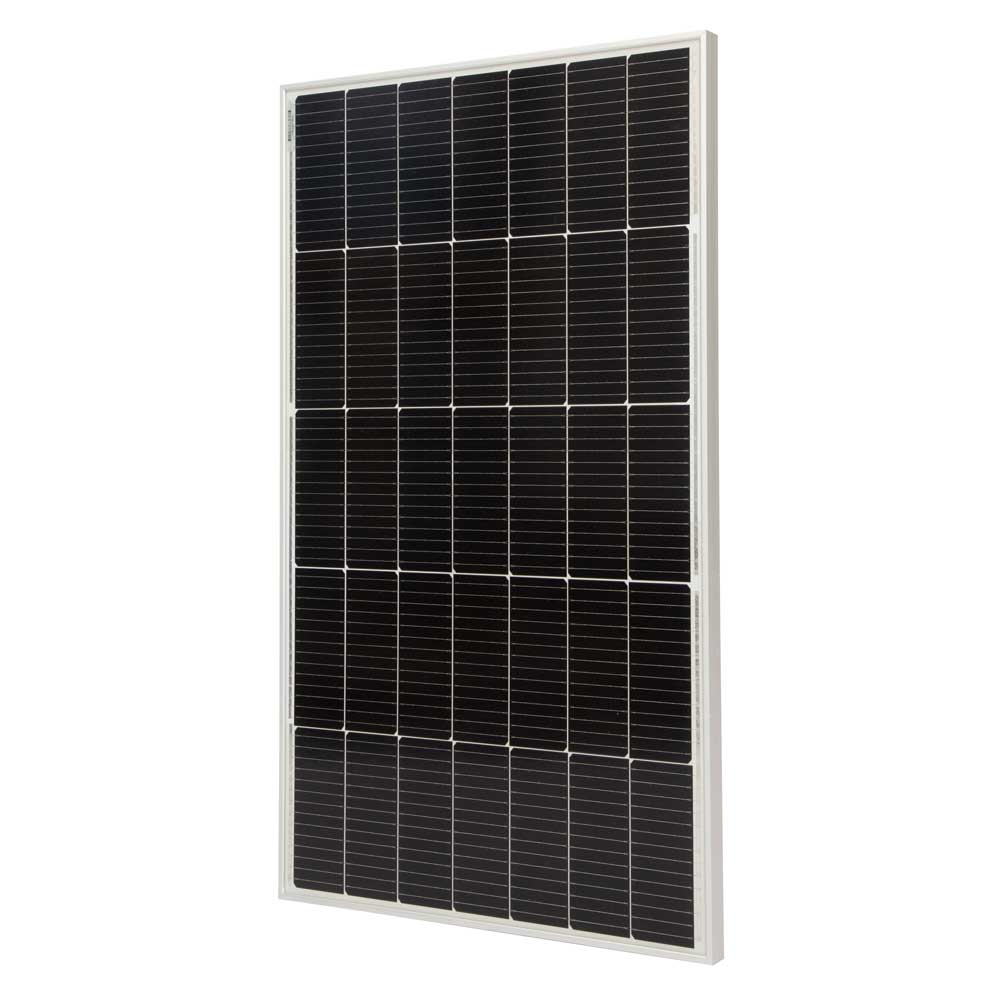

King kong EC Series Solar Panels 100W...

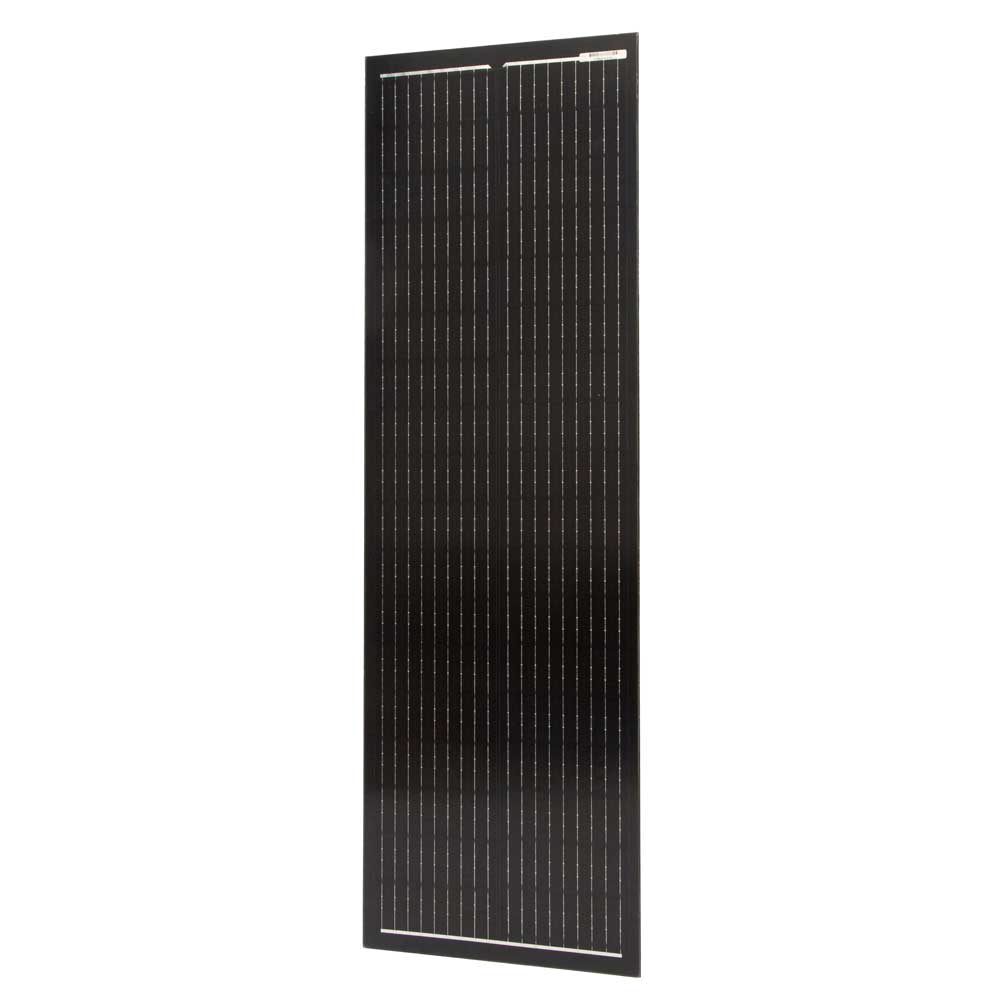

King Kong NR Series Solar Panels 70W ...

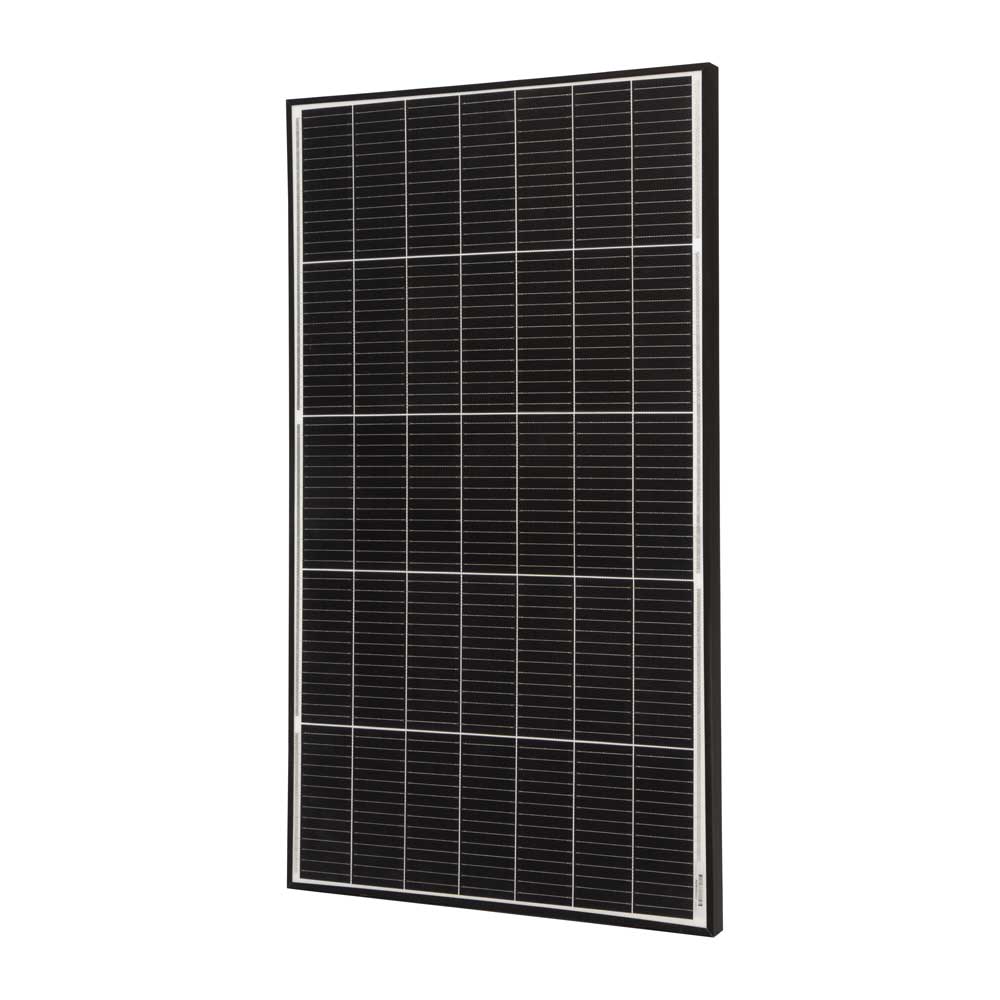

Dream Series Solar Panels 100W 20V TO...

King Kong PRO Series Solar Panels 130...

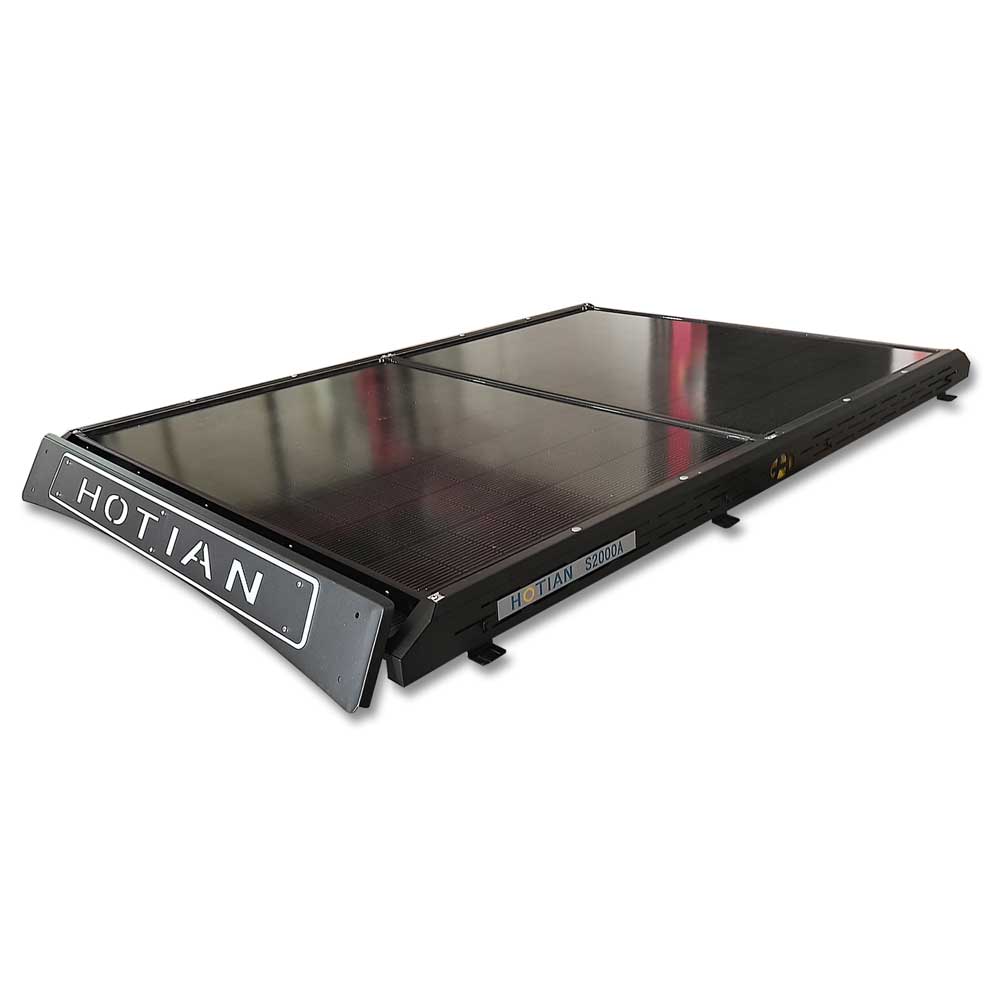

Light Wing Series Expandable Solar Panel

010203

PV Pumping Systems

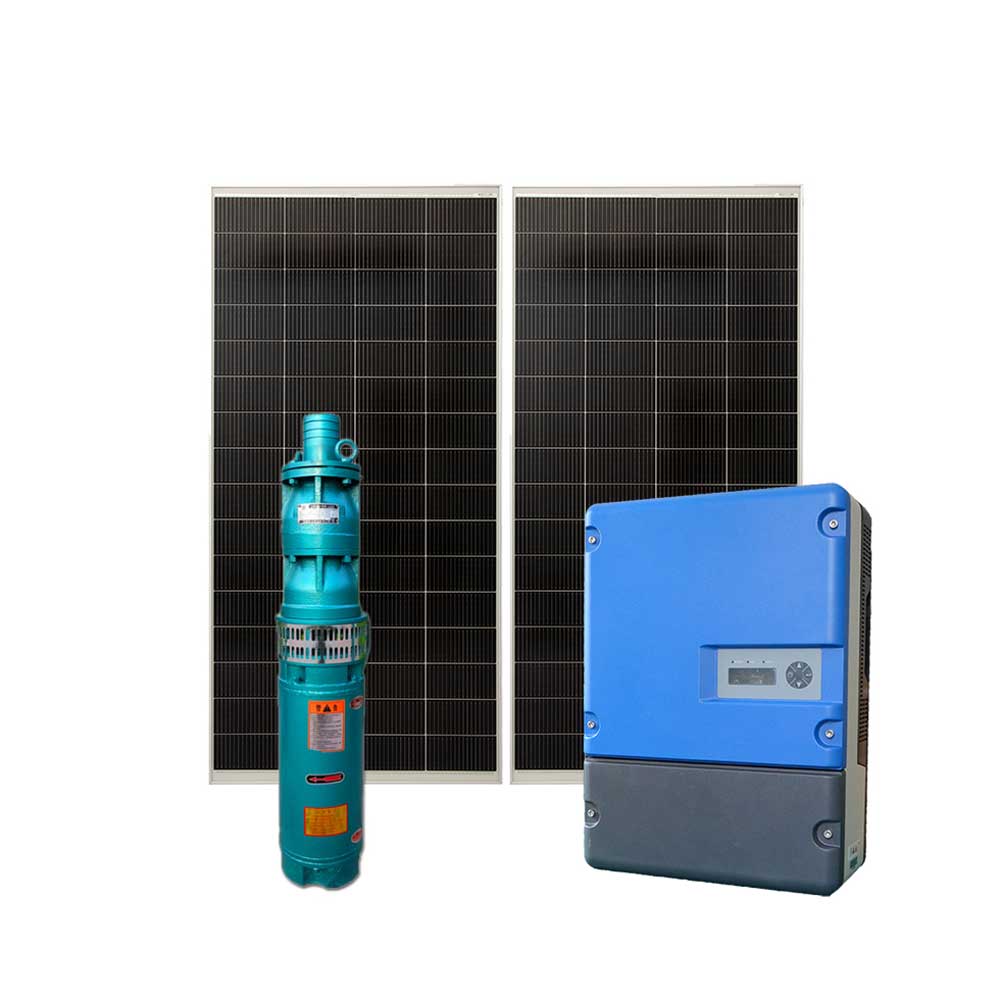

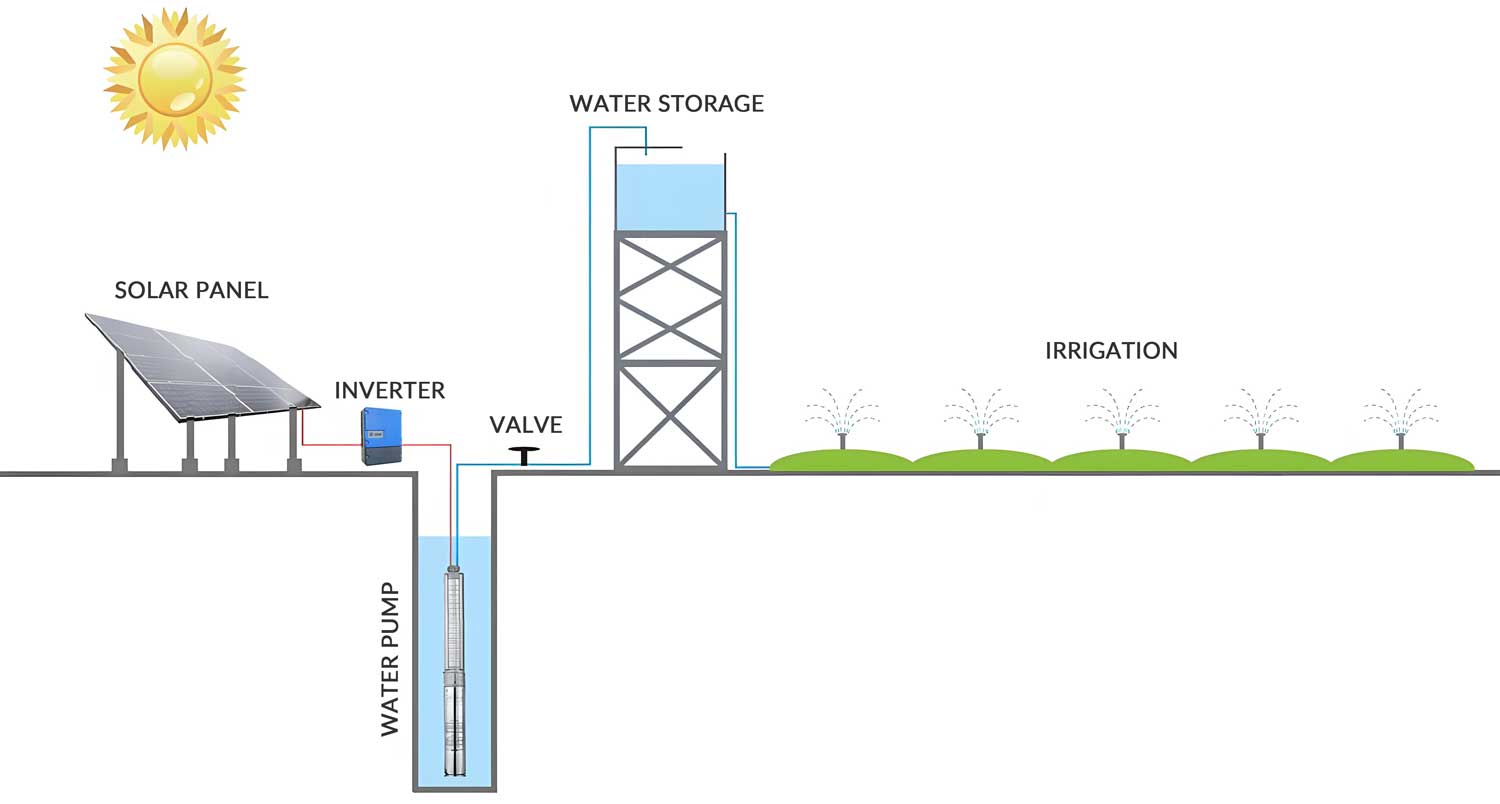

PV pumping system , mainly composed of inverter, water pump and solar panels. It is the most powerful way of water supply in the remote areas with little power shortage, using everywhere to take inexhaustible solar energy, the system fully automatic sunrise and sunset and rest, without personnel care, low maintenance workload, is an ideal set of economic, reliability and environmental protection benefits as one of the green energy pumping system.

product details

Product Principle

The photovoltaic array absorbs sunligGS radiation energy and converts it into electric energy to provide power supply for the whole system. The photovoltaic pump inverter converts the direct current output by the photovoltaic array into alternating current and drives the water pump, and adjusts the output voltage and frequency in real time according to the change of sunshine intensity to realize the maximum power point tracking. When the sunshine intensity becomes weak, the photovoltaic water pump system can realize the utility switching function, and the utility acts as the supplementary energy for the PV pumping system.

Product Advantage

(1) Full automatic operation: PV pumping system fully automatic operation, without manual duty.

(2) No energy storage: The system saves energy storage devices such as batteries, and replaces electricity storage with water storage, and directly drives the water pump to carry water.

(3) Maximum power point tracking: The PV pumping inverter controls and regulates the operation of the system to realize the maximum power point tracking.

(4) Full application of solar power: When the sunshine is sufficient, the rated operation of the system shall be guaranteed; when the sunshine is insufficient, the minimum operating frequency shall be set to ensure the full application of solar power.

(5) Work off the grid: Without power grid, the solar array directly provides power for the whole system.

(6) Compatible with various types of water pumps: Pumps take water from a source such as a deep well or a river or lake and inject it into a tank/pool or directly into an irrigation or fountain system. Centrifugal pump, axial flow pump, mixed flow pump, deep well pump, sewage pump, aeration pump and so on can be used.

Scope Of Application

The PV pumping system can be widely used in the fields of cash crop and farmland irrigation, barren mountain control, soil erosion protection, desertification and desertification land control, animal husbandry water and grassland irrigation, domestic water supply, seepage irrigation, drip irrigation, sewage treatment, landscape fountain and so on.

Due to the off-grid characteristics and convenience characteristics of PV pumping system, it can play an irreplaceable role in the national implementation of the strategy of "storing grain in the land and storing grain in technology", and extend the construction of high-standard farmland from plain to mountainous areas.

PV pumping system also has a strategic emergency function, when the state grid is damaged by external forces, oil supply, photovoltaic water lifting system will be the people's life, all water industry indispensable emergency measures.

PV pumping system.

Product Speci5、Product Specification

Name	Model	Specification
1.1KW Solar Pumping System	GS-1.1K2-PPS	1.1KW	3 phases 220V
1.5KW Solar Pumping System	GS-1.5K2-PPS	1.5KW
2.2KWSolar Pumping System	GS-2.2K2-PPS	2.2KW
3KW Solar Pumping System	GS-3K3-PPS	3KW	3 phases 380V
3.7KW Solar Pumping System	GS-3.7K3-PPS	3.7KW
4KW Solar Pumping System	GS-4K3-PPS	4KW
5.5KW Solar Pumping System	GS-5.5K3-PPS	5.5KW
7.5KW Solar Pumping System	GS-7.5K3-PPS	7.5KW
11KW Solar Pumping System	GS-11K3-PPS	11KW
15KW Solar Pumping System	GS-15K3-PPS	15KW
18.5KW Solar Pumping System	GS-18.5K3-PPS	18.5KW
22KW Solar Pumping System	GS-22K3-PPS	22KW
25KW Solar Pumping System	GS-25K3-PPS	25KW
30KW Solar Pumping System	GS-30K3-PPS	30KW
37KW Solar Pumping System	GS-37K3-PPS	37KW
45KW Solar Pumping System	GS-45K3-PPS	45KW

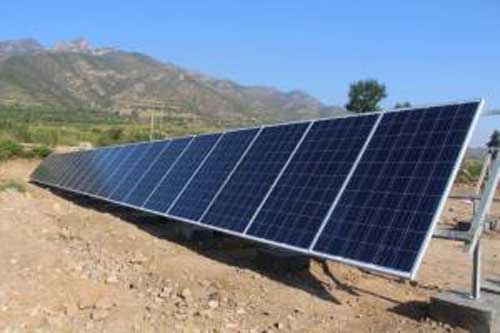

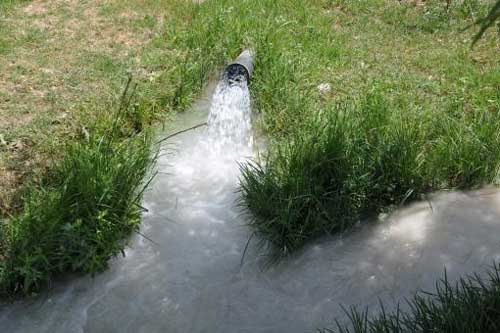

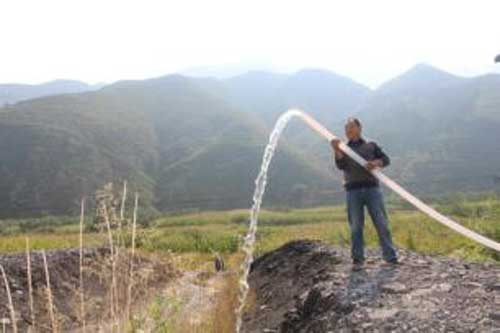

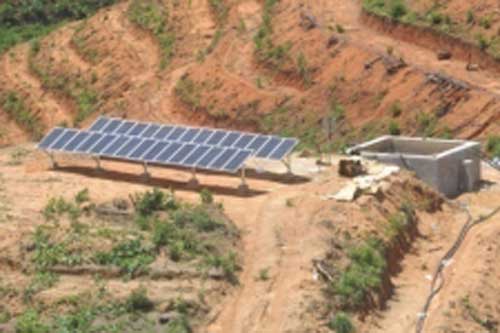

Application Case Presentation(Only Part Of The Cases Is Displayed)

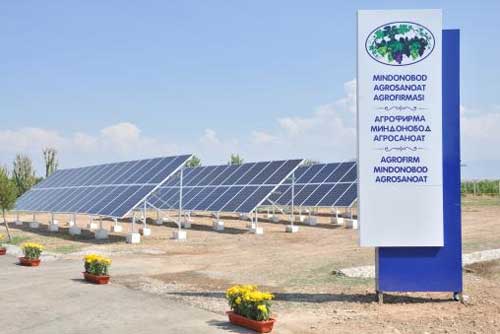

ITEM NUMBER: No.PPS-UB17032301 GS-45K3-PPS

Year 2017, an application of Solar Water Pumping System in Uzbekistan, a project supported by Russia.

ITEM NUMBER：No.PPS-YN16081301 GS-18.5K3-PPS

Year 2017, a Solar Water Pumping System in Yunnan China to help local farms to improve the production.

ITEM NUMBER：No.PPS-YN160050801 GS-15K3-PPS

Year 2017, the water pumping system is installed to help people living in a rural area 160km from Beijing with living water.

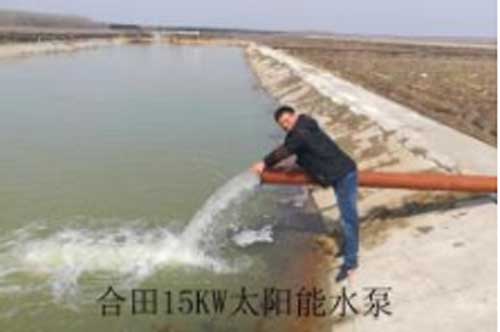

ITEM NUMBER：No.PPS-YN14110201 GS-15K3-PPS

Heilongjiang Jiamusi is a national agricultural lab area in China with rich underground water resource. We installed water pumping system to realize the modern technological agriculture.
