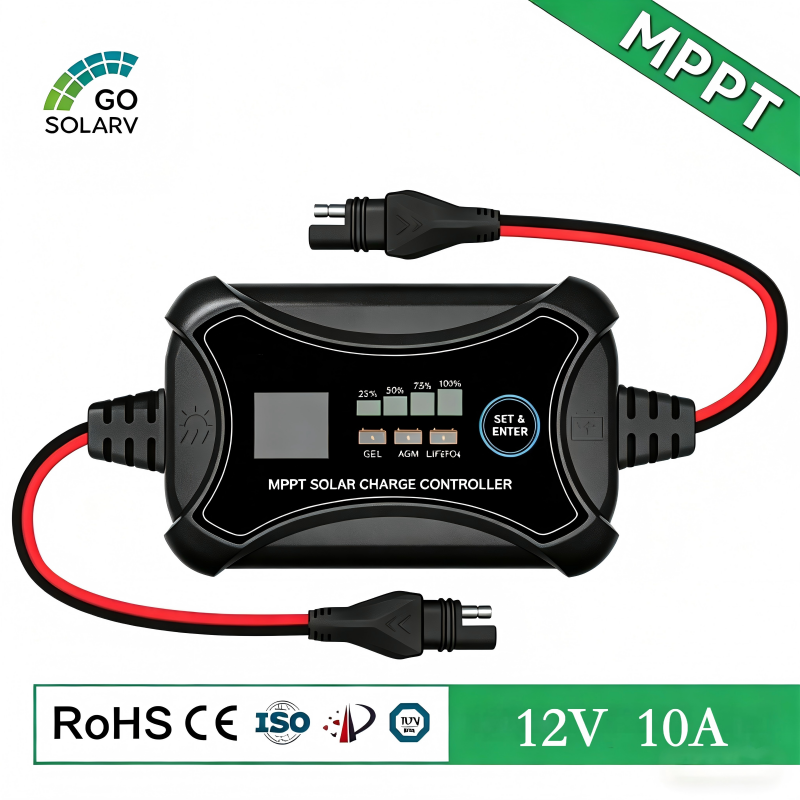

12V 10A MPPT Solar Charge Regulator for RV Camper, Yacht Marine and Off-Grid Battery System-1-1

The MPPT solar charge controller manages battery charging from solar panels. Its built-in MPPT maximum power point tracking module can detect the output voltage of solar panels in real time and track the optimal voltage and current (VI) values, enabling the system to charge the battery at maximum power output.

Used in solar photovoltaic systems, it coordinates the operation of solar panels, batteries and loads, and protects batteries against overcharge and over-discharge.

• 100% MPPT charge with no tracking limit.
• LCD screen + LED indicators for displaying.
• Small size for portable use.
• Quick plug design, plug & play.
• Suitable for small size solar portable charge systems.
• Customizing cables and connectors acceptable.
• Multiple battery charge protections.

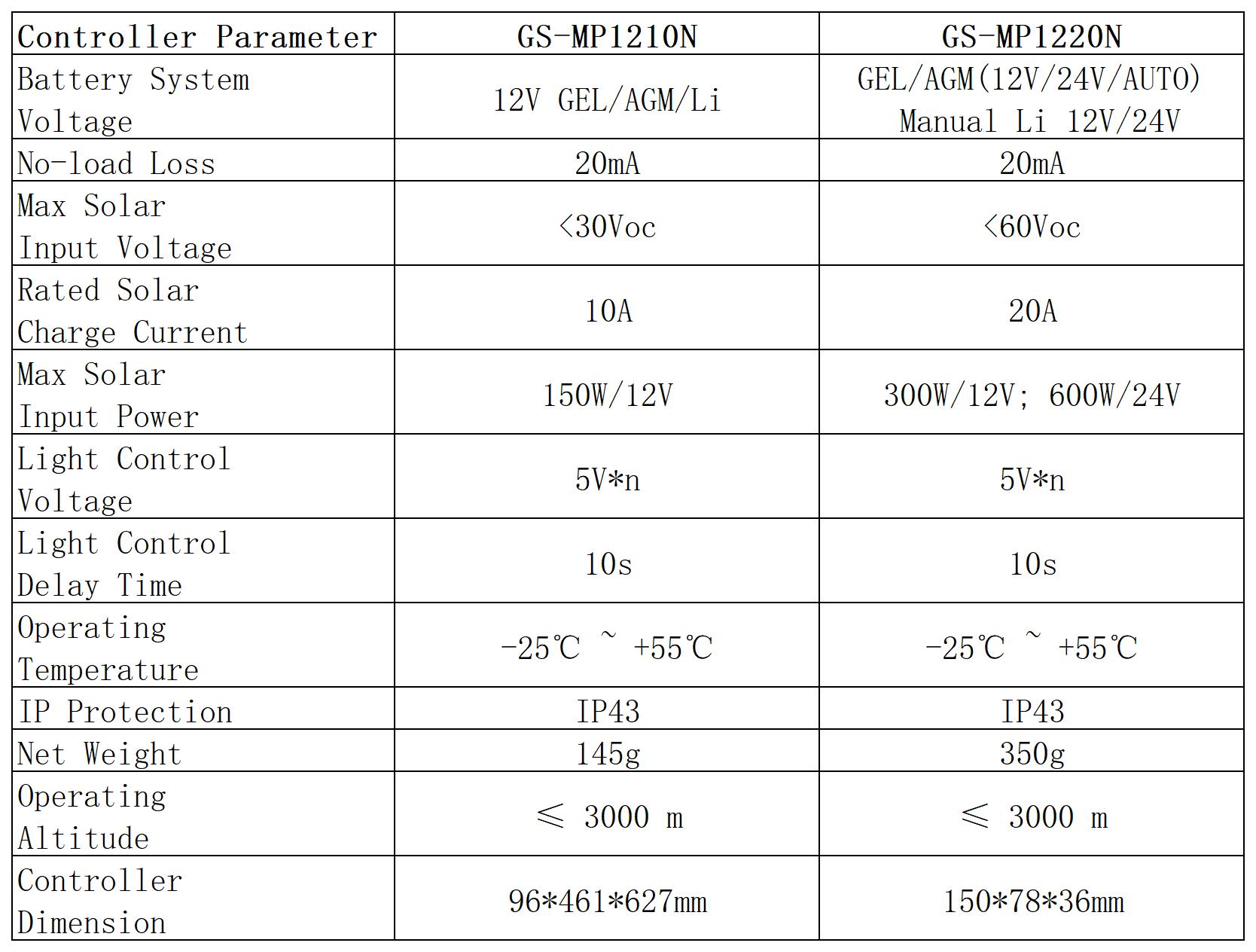

Product Parameters

Schematic Diagram

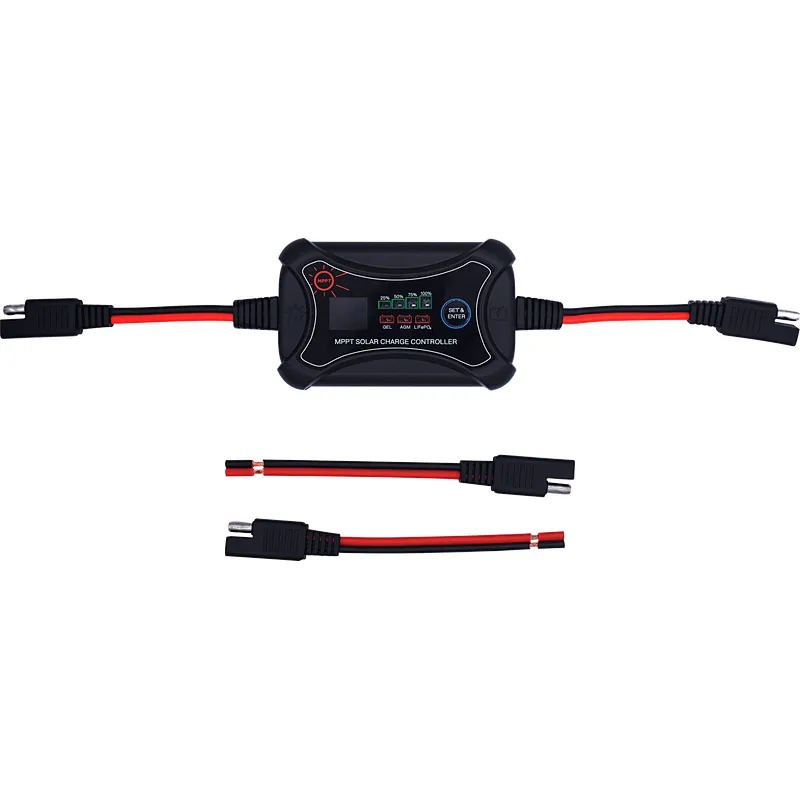

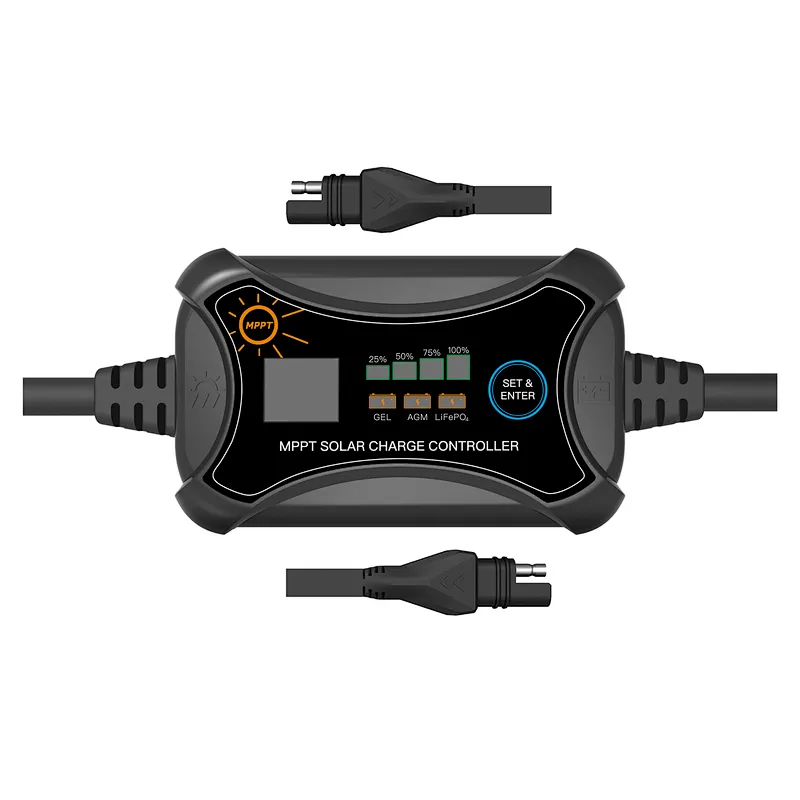

Product Display

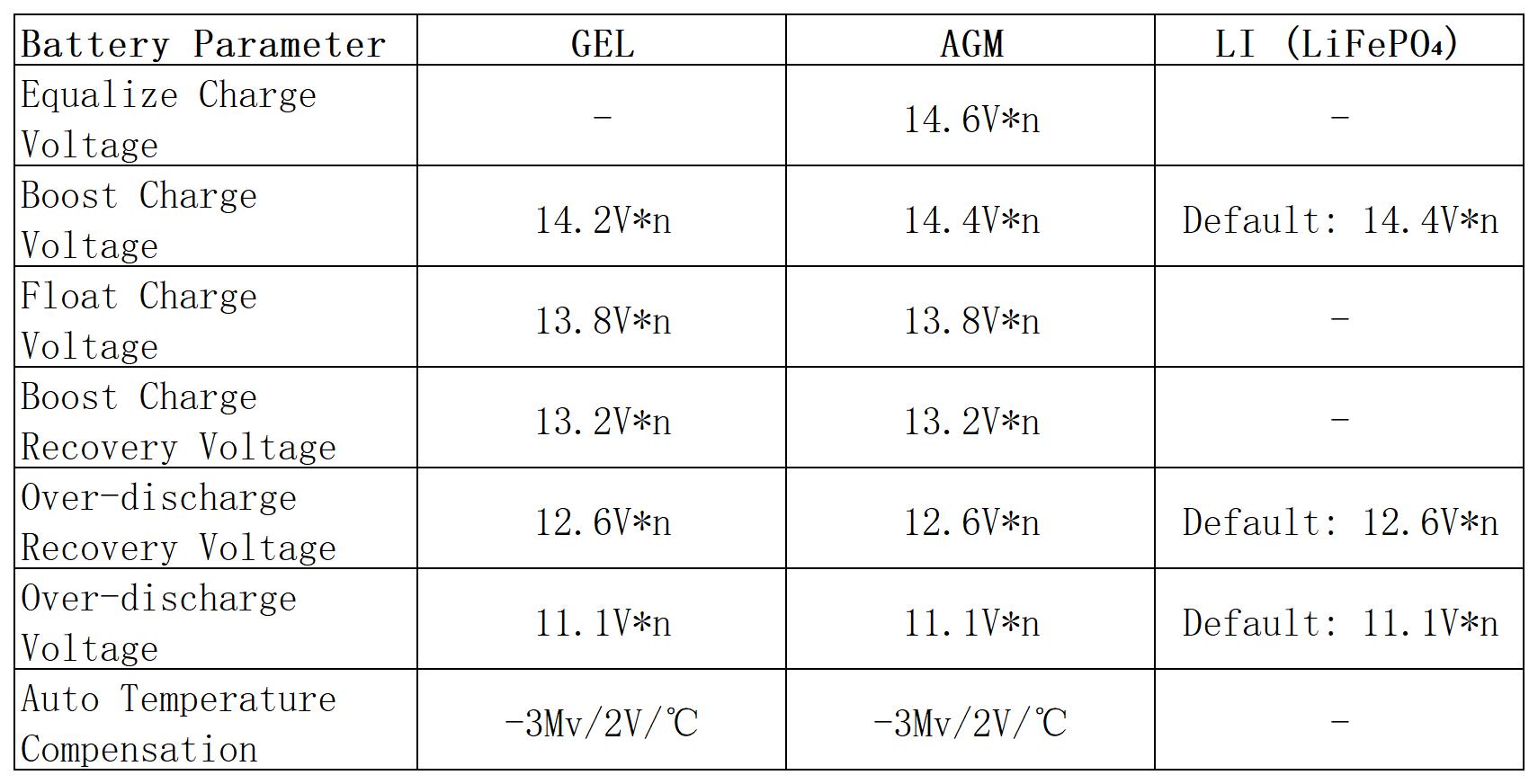

Relevant Information

The variable“n”is adopted as a multiplying factor when calculating parameter voltages, the rule for“n”is listed as: if battery system voltage is12V, n=1; 24V, n=2;36V, n=3;48V, n=4.

For example, the equalize charge voltage for a12V FLD (Flooded) battery bank is14.8V*1=14.8V.The equalizing charge voltage for a 24V FLD (Flooded) battery bank is14.8V*2=29.6V.
