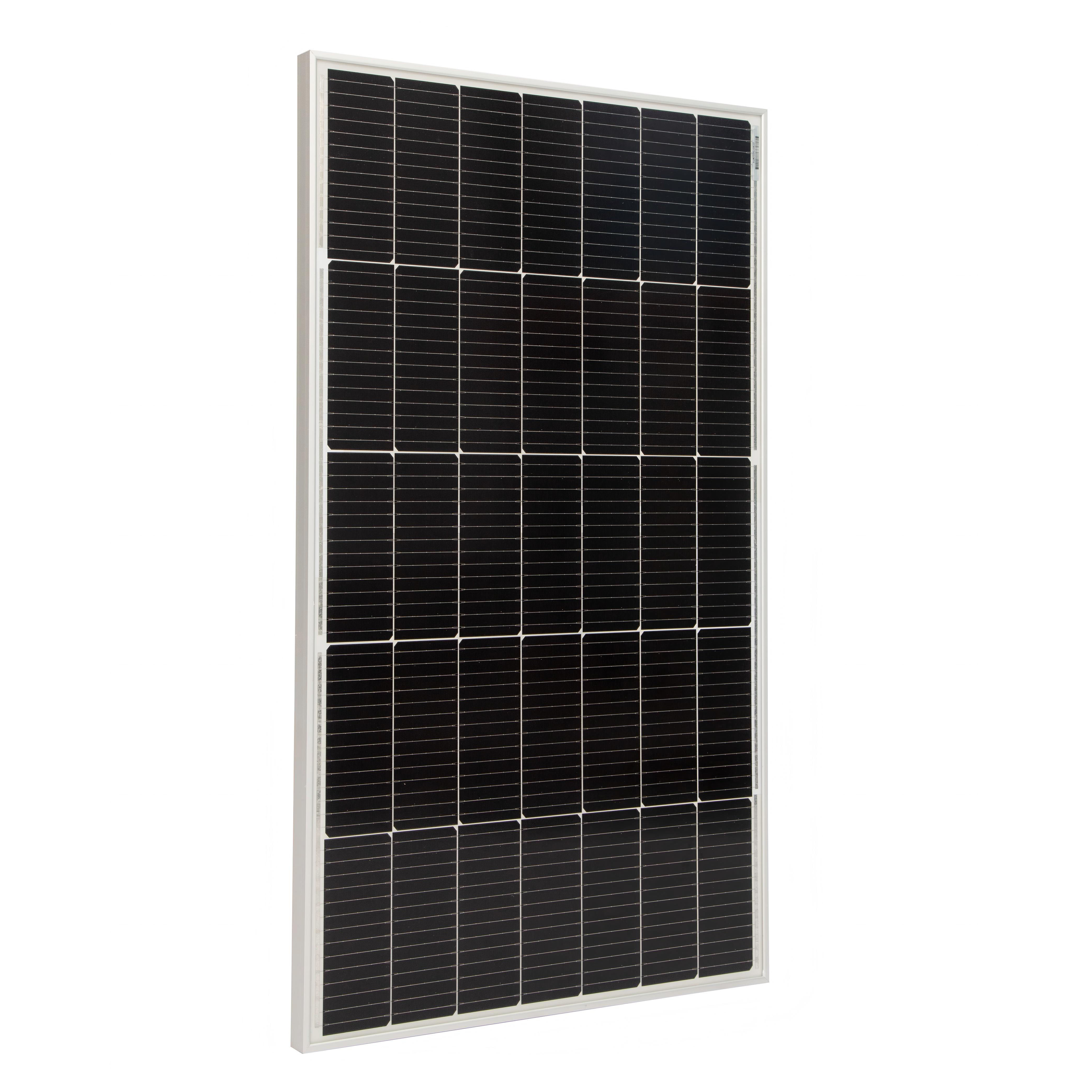

King kong PRO Series Solar Panels 100W 20V TOPCON Monocrystalline
Product description
The King Kong PRO solar panels adopts an original distributed diode technology. Under the same shading conditions, it has the advantage of higher output power compared to common modules. It is encapsulated with 3.2mm ultra-white tempered glass and protected by an aluminium alloy frame. There are screw holes for installation on the frame, which can be used for planar installation. (For specific performance, please refer to the "Power ComparisonTest Report of King Kong PRO Module and Conventional Solar panels")
Grade A high-efficiency
monocrystalline silicon
laminated solar panel
Key features
-
Gallium-doped TechnologyEnhanced light absorption efficiency for higher conversion efficiencyLower LCOE and BOSLightweight design with transparent back panel for easy installation and reduced BOS costs.Module power is typically increased by 5-25%, resulting in a significant reduction in LCOE.Anti PID/Low LID protectionLess Hot Spot Shading effectsLower temperature coefficient
Product Parameters
| Mechanical parameters | |
| Cells configuration |
5×7 |

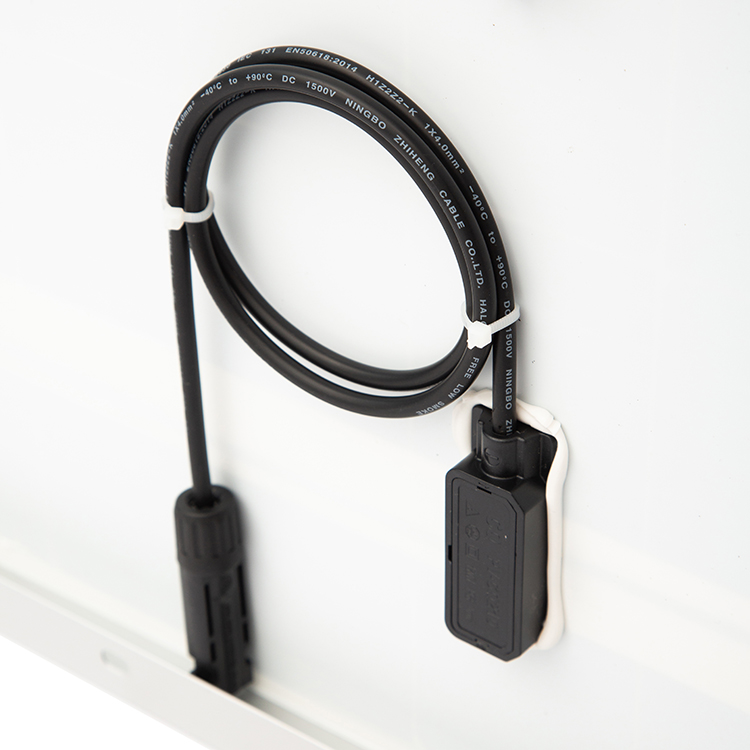

| Junction box |
Split type junction box，Five diodes |
|

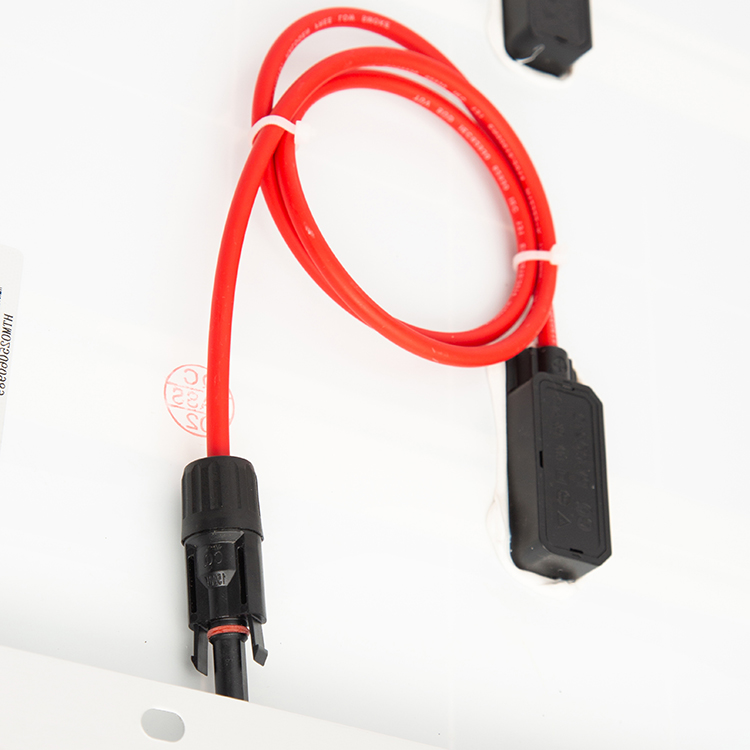

Output Cables |
2.5mm²,The positive and negative electrodes are both 300 mm |
| Glass Type |
3.2mm Tempering、Ultra white |
| Frame |
Anodized aluminum alloy frame |
| Net weight |
5.3Kg |
| Size |
945*540*30mm |
| Electrical performance parameters | |
| Cell type |
TOPCON Monocrystalline |
| Model |
GSMO-YWET100-20A |
| Standard power |
100W |
| Peak voltage (Vmp) |
21.2V |
| Peak Current (Imp) |
4.71A |
| Open Circuit Voltage |
25.51V |
| Short Circuit Current |
5.12A |
| Test standards |
STC : AM1.5 1000W/m² 25℃ |
| Working parameters | |
| OTR |
- 40℃— +80℃ |
| Power Tolerance |
±2% |
| System Voltage |
DC1000V |
| Maximum fuse rating |
10A |
| Nominal temperature |
45±2℃ |
| Safety Class |
Class Ⅱ |
| Fire resistance rating |
Class C |
| Load capacity | |
| Front static load |
3600Pa |
| Rear static load |
2400Pa |
| Hail Impact test |
Diameter: 25mm, Impact speed: 23m/s |
| Temperature coefficient | |
| TC Power |
- 0.30%/℃ |
| TC Voltage |
- 0.28%/℃ |
| TC Current |
+0.05%/℃ |
Product Display
